BMS SETUP
13S 35AMP BMS

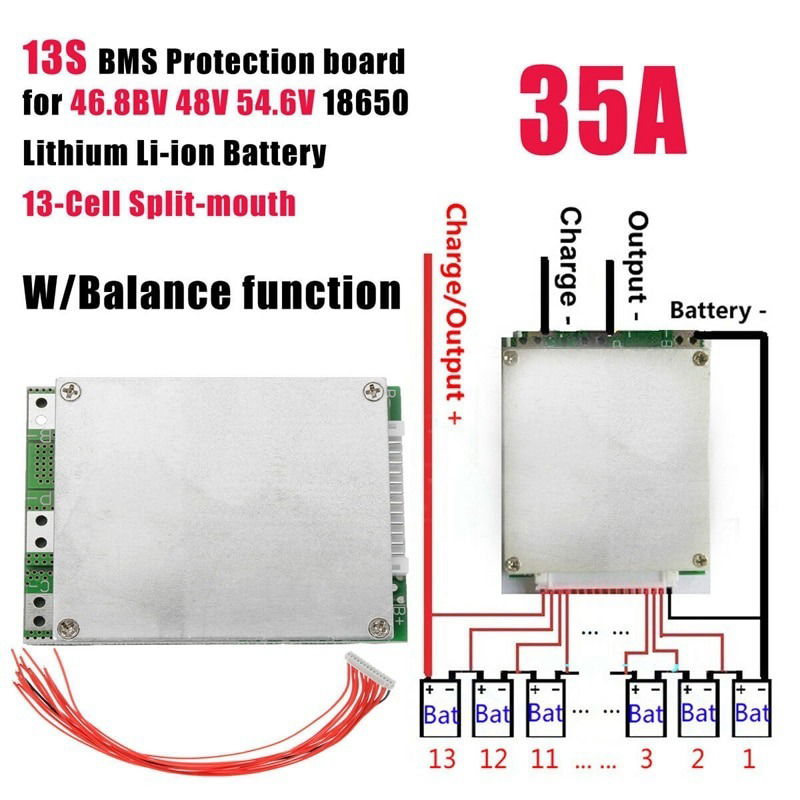

13S BMS INFORMATION
13S 35A 48V Li-Ion Lithium 18650 Battery Protection Board With Cell Bms Pcb Protection Balance Integrated Circuits Board Name: 13S 35A 48V Protection Board with Balance Model: 800787 Cable length: 300mm Charging current: Less than equal 8A Electrical parameters: As shown in following table Electrical parameters: (13 string split-mouth) With a balanced Overcharge protection Over discharge protection Over current protection Short circuit protection Temperature protection colour:Silver + red + green Material:PC+ metal Size: 69*51*8mm Package Contents: 1 * Battery Protection Board 1 * cable Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

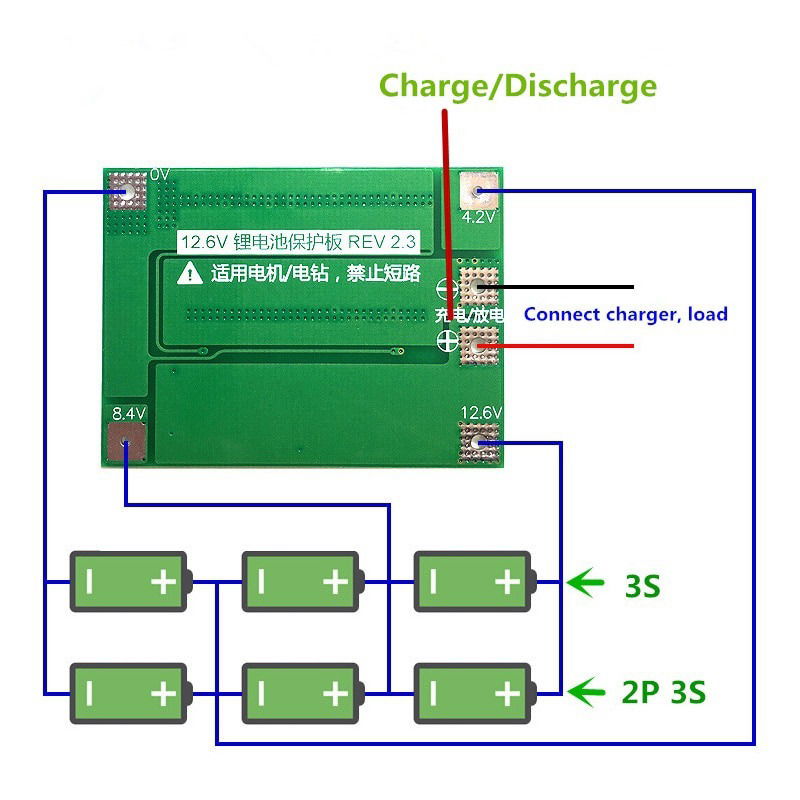

3S 40AMP BMS
3S 40 AMP BMS
3S 40A Li-ion Lithium Battery Charger Protection Board PCB BMS 11.1V 12.6V Lipo Cell Module 3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery) Scope: Nominal voltage of 3.7V lithium battery (including 18650,26650, polymer lithium battery) Product Size: 41 * 55 * 3.4mm (Enhanced Version), 41 * 60 * 3.4mm (Balanced version) Product weight: 8.8g (enhanced version), 9.8g (balanced version) Charging voltage: 12.6V - 13.6V Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current ) Continuous charge current (upper limit): 20A
